Semi Automatic Pressure Curing Oven – PCO 1250

Semi automatic loading batch Pressure Curing Oven for magazines.

• Oven Size (mm): 3,040[L] x 1,980[W] x 2,698[H]

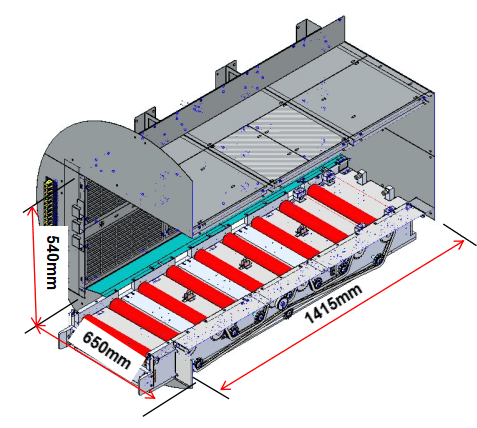

• Chamber Usable Area (mm): 1,415[L] x 650[W] x 540[H]
• Max Operating Pressure: 10 Bar (145 psi)
• Max Operating Temperature: 200⁰ C
• Nitrogen Enabled (option)
• Up to Cleanroom Class 100 (option)
• Vacuum down to 10 Torr (option)
• Semi-automatic loading with magazines loaded on pallet on cart

Magazine loading with cart.
